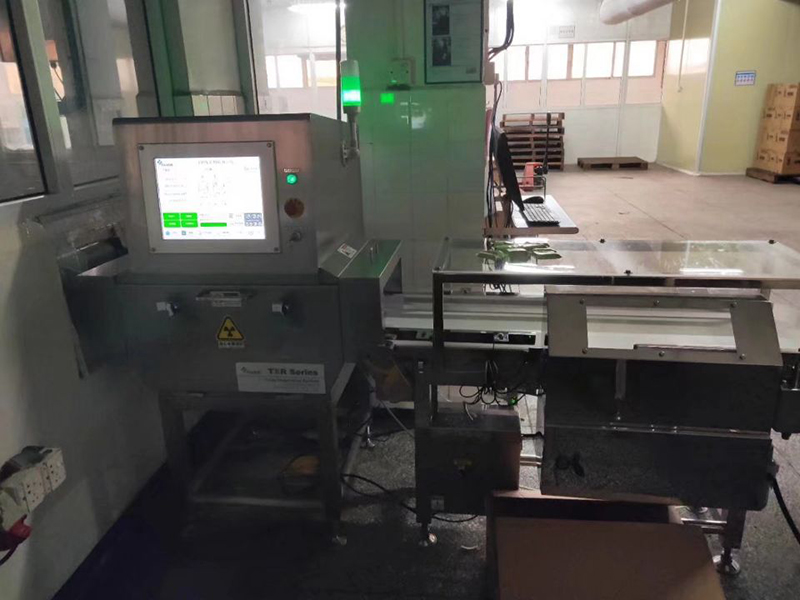

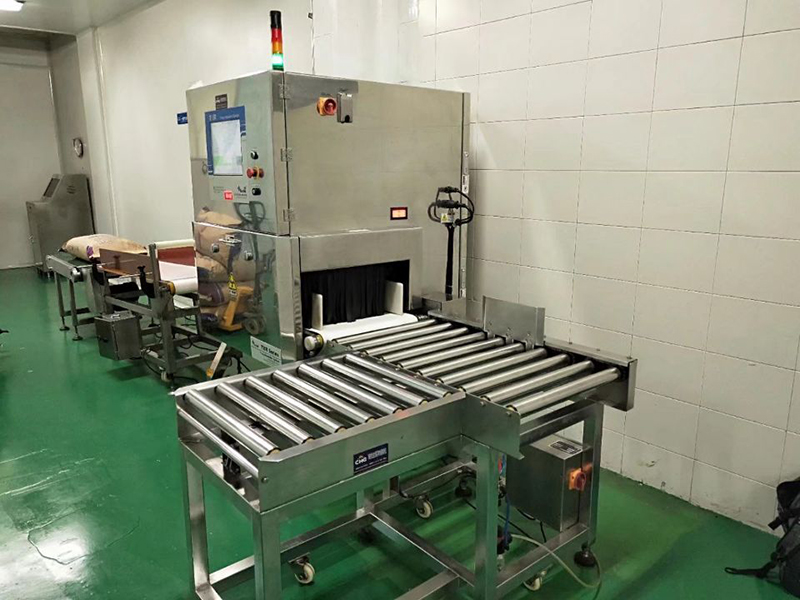

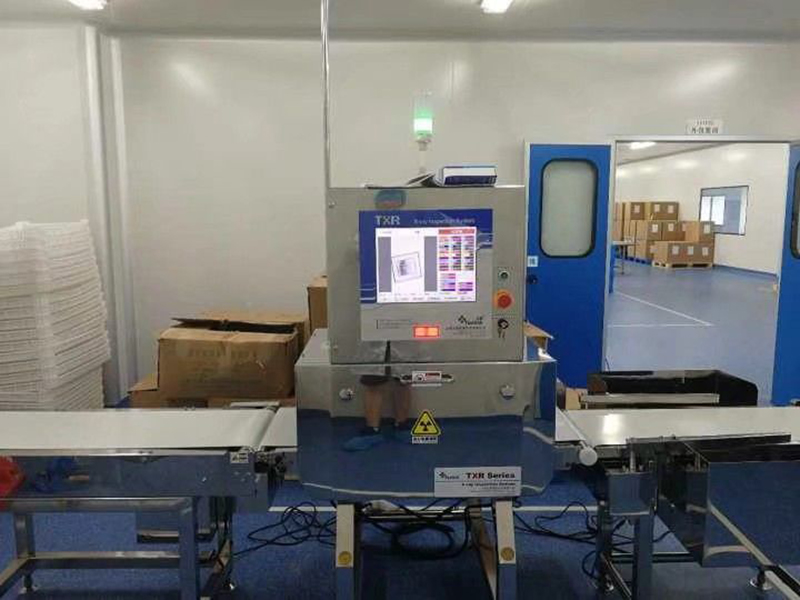

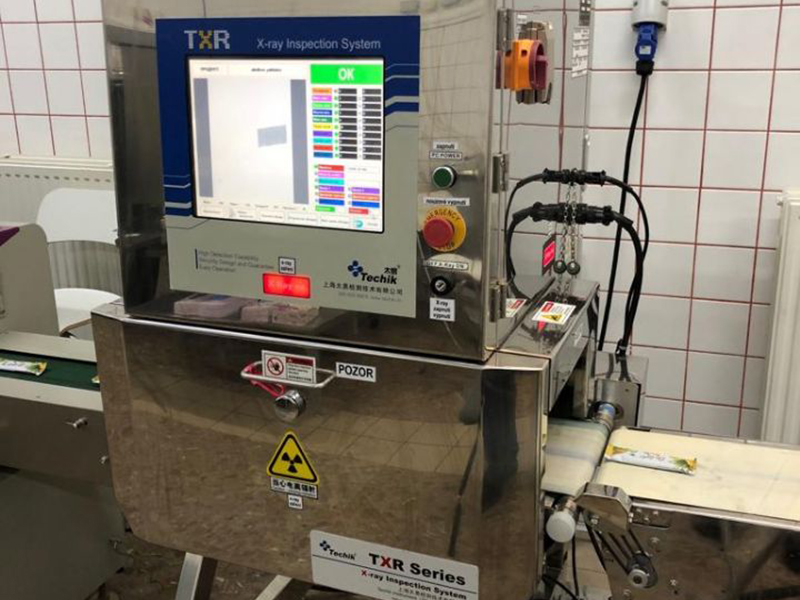

Standard X-ray Inspection System
Techik’s Standard TXR Series foreign body detection system takes advantage of X-ray penetration power to detect contamination. It can detect a significant number of infections. Detects even metallic, non-metallic impurities (glass, ceramic, stone, bone, hard rubber, hard plastic, etc.). Also, it can check metal, non-metal packaging and canned products and temperature, humidity, salt content, etc, can affect the result of the tests.
The Standard TXR Series foreign body detection system can be combined with the Automatic Traysealer TRAVE and fillers of G.Mondini. You can also combine the Techik weight controller with other control and weighing systems.
Pms Hellas has long experience in the field of food industry equipment. It can offer packaging and processing machines as well as packaging consumables. It also offers personalized solutions for all production units, small – medium – large capacity.
PMS HELLAS offers comprehensive technical support (training-spare parts-maintenance) as it knows very well what industrial production means. It has a technical department staffed by specialized technicians who offer their services all days of the week.
We will be happy to respond to your request and together we will design the best solution according to your needs.
For more information you can go to the site of Techik.
Simple to Disassemble, Easy to Clean, and Reliable Security
Good environment adaptability
Equipped with industrial air conditioner
Completely sealed structure to avoid dust
Environmental humidity can reach 90%
Environmental temperature can reach -10~40℃
Excellent Product Applicability
Up to eight grade image processing technology to achieve the best product adaptability and stability
High Configuration of Hardware
Spare parts are well-known imported brands to ensure the performance and service life of the machine
Excellent Operability
15-inch touch screen display, easy to operate
Auto-learning function. Equipment will automatically remember qualified product parameters
Automatically save the product images, which is convenient for user’s analysis and tracking
Shielding Function
Cans shielding
Desiccant shielding
Boundary shielding
Sausage aluminum buckle shielding
Detects Inspection Function
The system will detect and inform tablet crack, tablet lacking, and tablet with contamination.
Defective Tablets
Normal Tablets
None
Detects Inspection Function
X-ray leakage meets FDA and CE standards
Perfect safe operation monitoring to prevent the leakage from mis-operation
Specifications
| Model | Standard TXR Series | |||||||
| Standard | 2480 | 4080 | 4080L | 4080S | 4080SL | 4080SH | 5080SH | 6080SH |
| X-ray Tube | MAX. 80kV, 150W | MAX.80kV, 210W | MAX. 80kV,350W | |||||
| Inspection Width | 240mm | 400mm | 500mm | 600mm | ||||
| Inspection Height | 110mm | 160mm | 100mm | 160mm | 100mm | 220mm | 250mm | 300mm |
| Best Inspection Sensitivity | Stainless steel ball Φ0.3mm Stainless steel wire Φ0.2*2mm Glass/Ceramic ball Φ1.0mm | Stainless steel ball Φ0.4mm Stainless steel wire Φ0.2*2mm Glass/Ceramic ball Φ1.0mm | ||||||
| Conveyor Speed | 5-60m/min | 10-40m/min | ||||||
| O/S | Windows 7 | |||||||
| Protection Method | Soft curtain | |||||||
| X-ray Leakage | < 1 μSv/h (CE Standard) | |||||||
| IP Rate | IP66(Under belt) | |||||||
| Working Environment | Temperature: -10~40℃ | |||||||
| Humidity:30~90% no dew | ||||||||
| Cooling Method | Industrial air conditioning | |||||||
| Rejecter Mode | Sound and light alarm, belt stops(Rejecter optional) | |||||||
| Air Pressure | 0.6 Mpa | |||||||
| Power Supply | 1.5kW | |||||||
| Main Material | SUS304 | |||||||
| Surface Treatment | Mirror polished/Sand blasted | |||||||
*Note
The technical parameter above namely is the result of sensitivity by inspecting only the test sample on the belt. The actual sensitivity would be affected according to the products being inspected.
