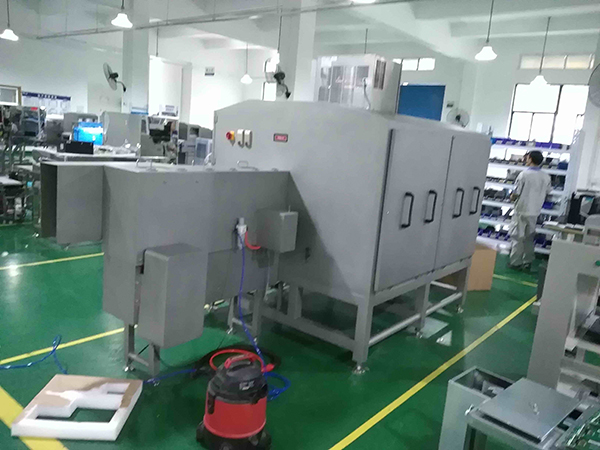

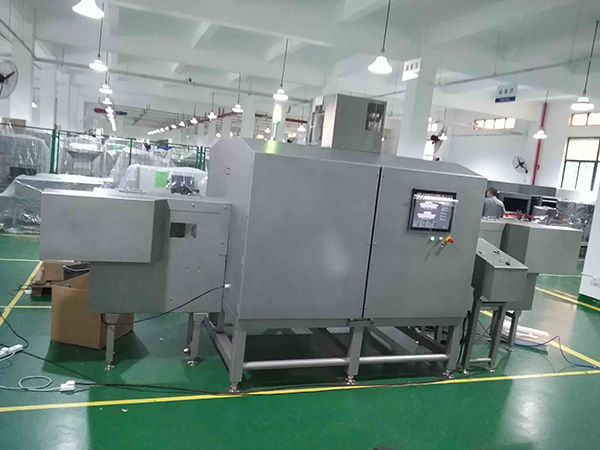

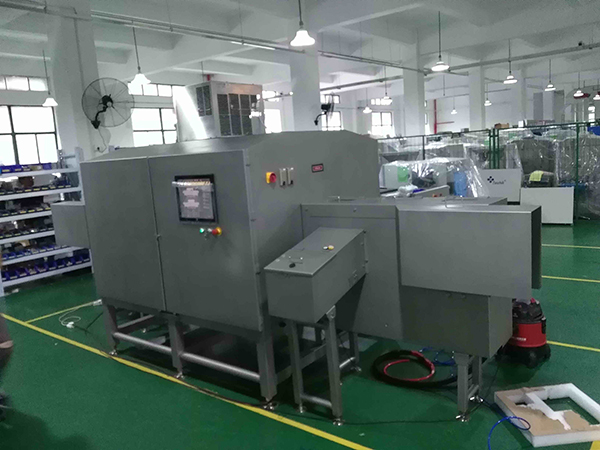

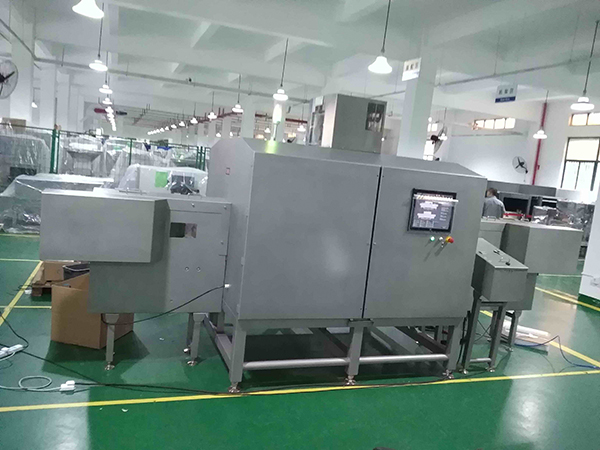

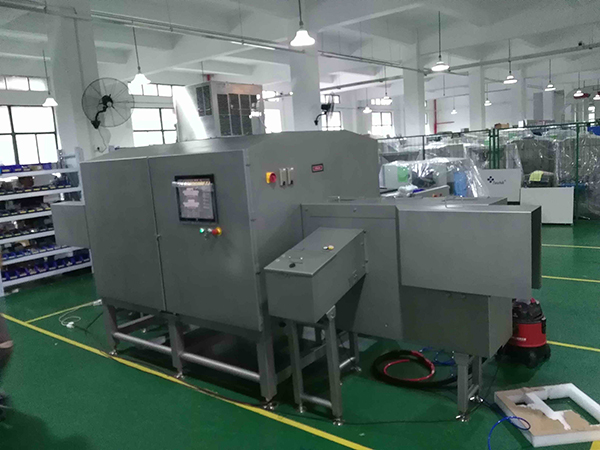

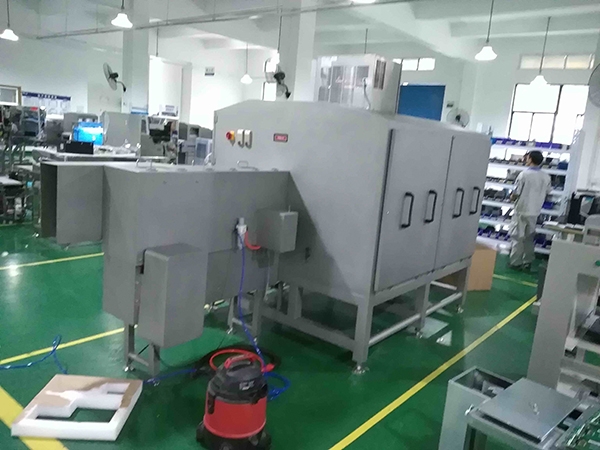

Triple-beam X-ray Inspection System
In production, there may be different types of foreign particles in the products and in different places, eg at the bottom, in the middle and at the top. If the products get out on the market with contaminants, the customer will complain, will demand high compensation something that will damage the business reputation, which will need to pay a high fine. The TXR-20250 triple-beam X-ray inspection system is the most reliable X-ray inspection system.
The TXR-20250 triple-beam X-ray inspection system can be combined with the Automatic Traysealer TRAVE and fillers of G.Mondini. You can also combine the Techik weight controller with other control and weighing systems.
Pms Hellas has long experience in the field of food industry equipment. It can offer packaging and processing machines as well as packaging consumables. It also offers personalized solutions for all production units, small – medium – large capacity.
PMS HELLAS offers comprehensive technical support (training-spare parts-maintenance) as it knows very well what industrial production means. It has a technical department staffed by specialized technicians who offer their services all days of the week.
We will be happy to respond to your request and together we will design the best solution according to your needs.
For more information you can go to the site of Techik.
The TDI system allows you to create an image up to 8 times better, thanks to the real-time processing software that guarantees greater efficiency and a pixel size of 0.4 mm. There is the possibility of correcting the inspection point according to the type and height of the container, as well as being able to check the height of the liquid inside, the surface imperfections and contaminants in the package; all simultaneously thanks to the double or triple angle of vision. The low levels of radiation then allow the system to last longer, with energy consumption up to 5 times lower than other systems on the market, and with lower maintenance costs thanks to its modular structure. It is equipped with an advanced 24-level image processing algorithm for greater precision and reliability, as well as being designed and designed for easy sanitization.
Triple beam X-ray inspection system are the most reliable X-ray inspection system with “adjustable point of view” on 3 X-ray beams for any kind of jars, bottles, tins, etc.
Ensure high detection accuracy.
Avoid inspection blind area.
Specifications
| Model | TXR-20250 | TXR-2080BDX |
| X-ray Tube | MAX. 120kV, 480W | MAX. 120kV, 480W |
| Inspection Width | 160mm | 160mm |
| Inspection Height | 260mm | 260mm |
| Best Inspection Sensitivity | Stainless steel ball Φ0.4mm Stainless steel wire 0.2*2mm Glass/Ceramic ball Φ1.0mm | Stainless steel ball Φ0.5mm Stainless steel wire Φ0.3*2mm Glass/Ceramic ball Φ2.0mm |
| Conveyor Speed | 10-60m/min | 10-60m/min |
| Operative System | Windows 7 | |
| Protection | Protective tunnel | Protective tunnel |
| X-ray Leakage | < 0.5 μSv/h | < 0.5 μSv/h |
| IP Protection | IP54 (Standard), IP65 (Optional) | IP54 (Standard), IP65 (Optional) |
| Working Environment | Temperature: 0~40℃ | Temperature: -10~40℃ |
| Humidity: 30~90% | ||
| Cooling Method | Industrial air conditioning | Industrial air conditioning |
| Rejecter Mode | Push rejecter | Push rejecter |
| Air Pressure | 0.8Mpa | 0.8Mpa |
| Power Supply | 4.5kW | 4.0kW |
| Main Material | SUS304 | |
| Surface Treatment | Mirror polished/Sand blasted | Mirror polished/Sand blasted |
Note
The technical parameter above namely is the result of sensitivity by inspecting only the test sample on the belt. The actual sensitivity would be affected according to the products being inspected.
