Trave 340

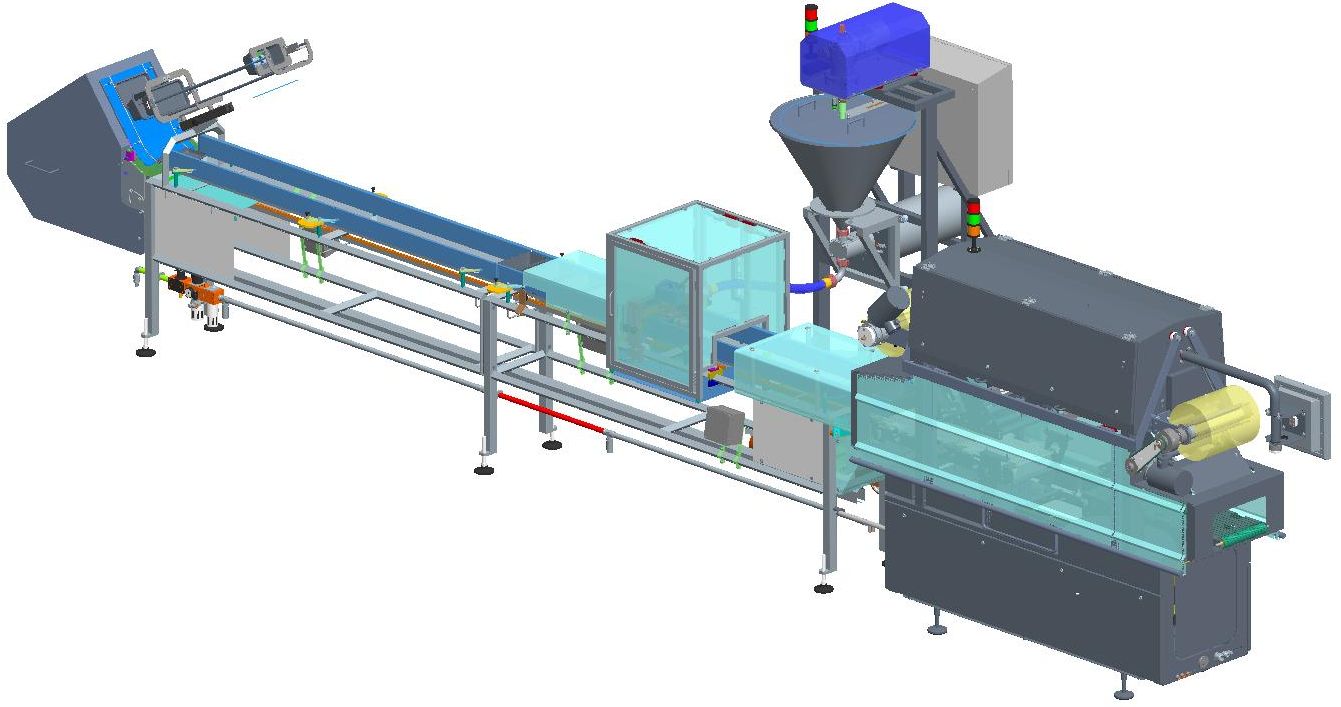

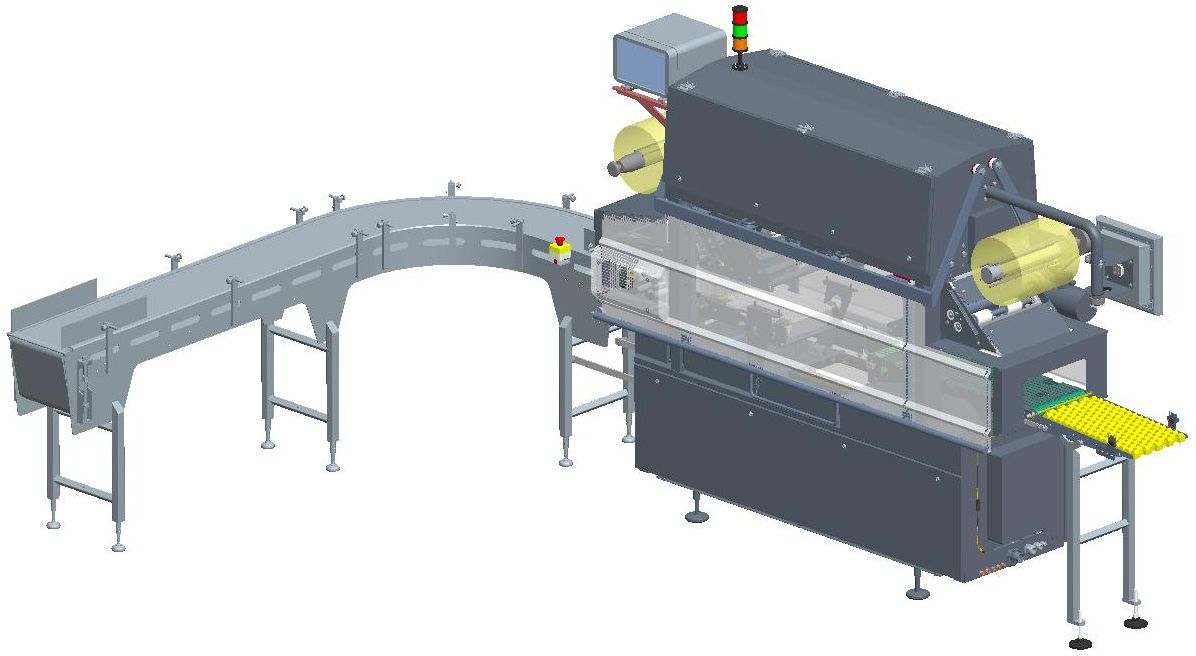

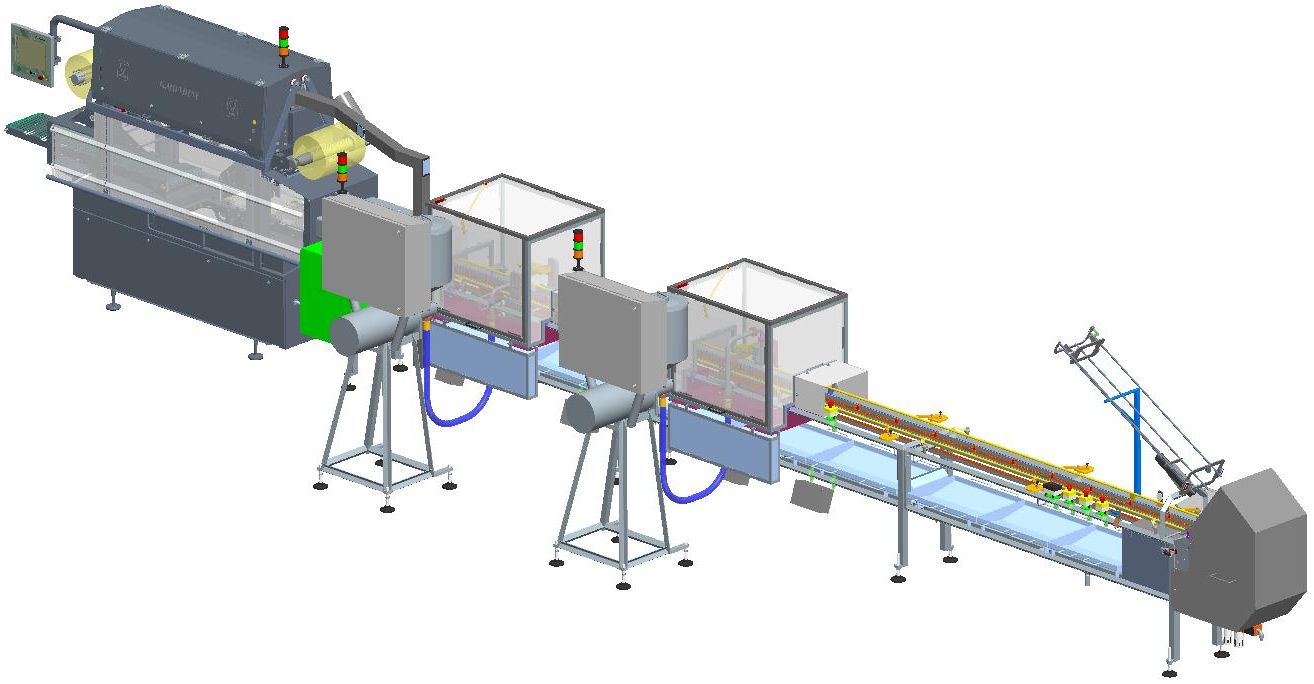

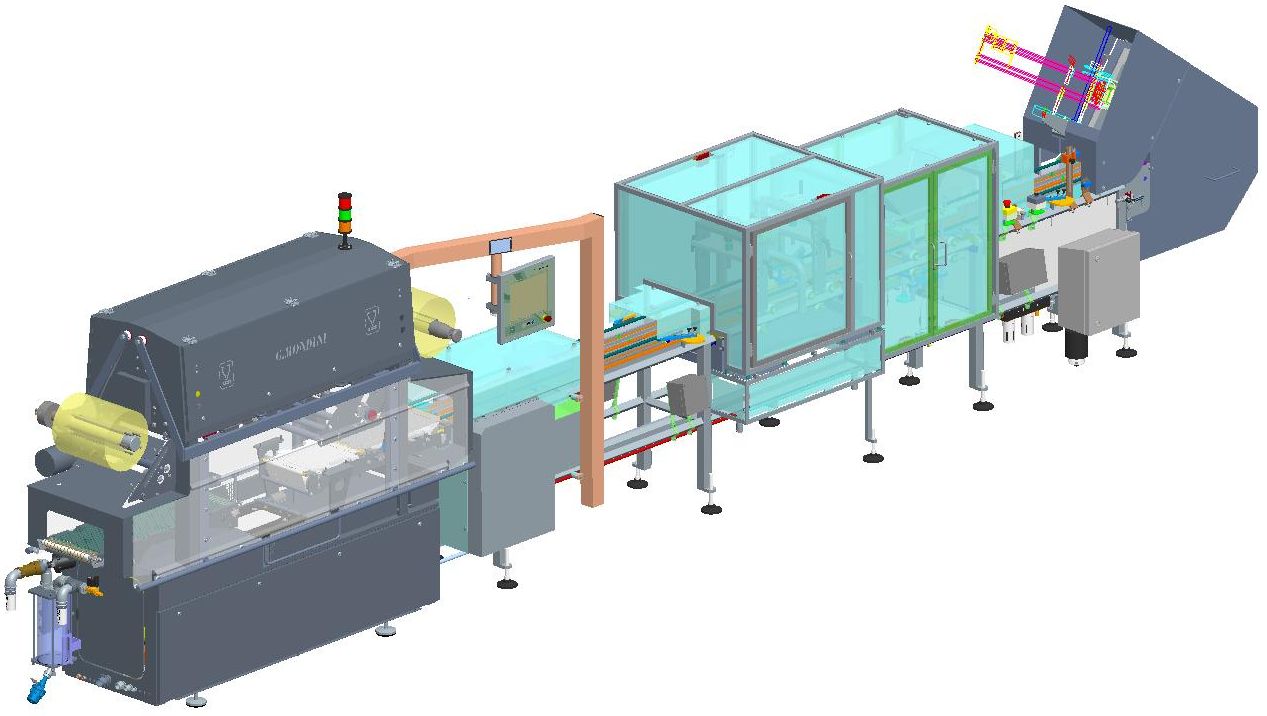

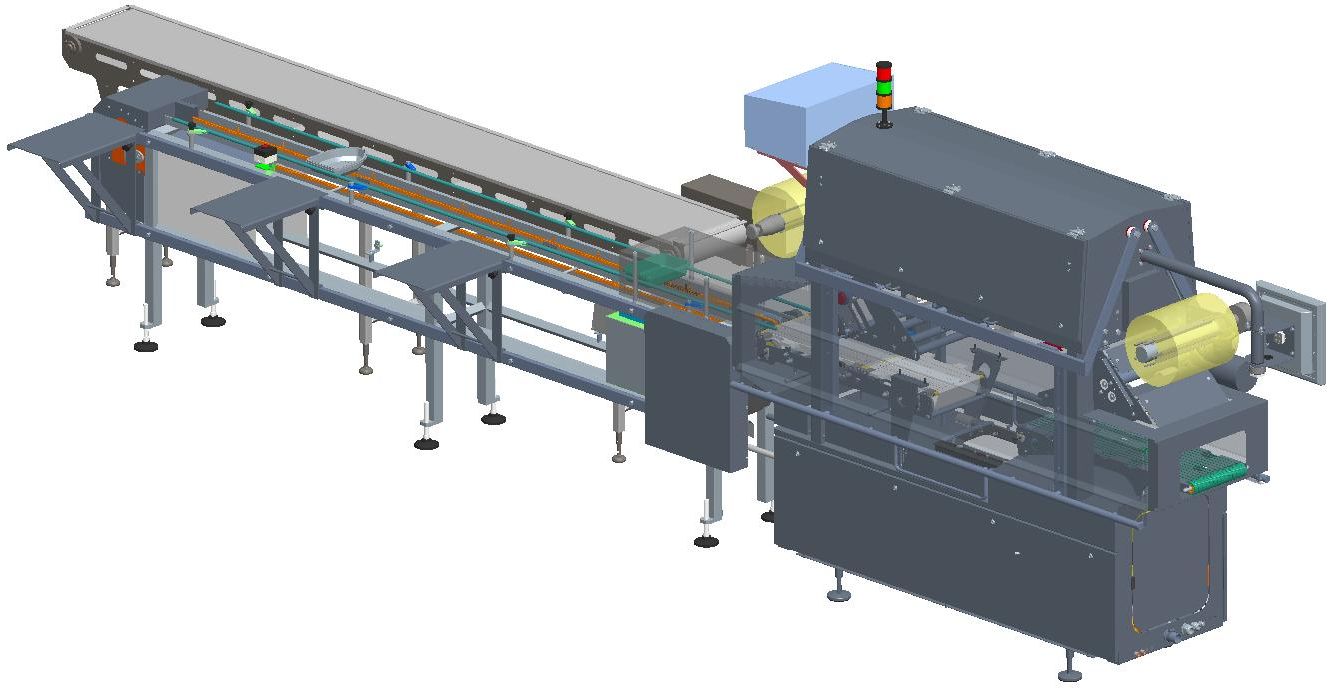

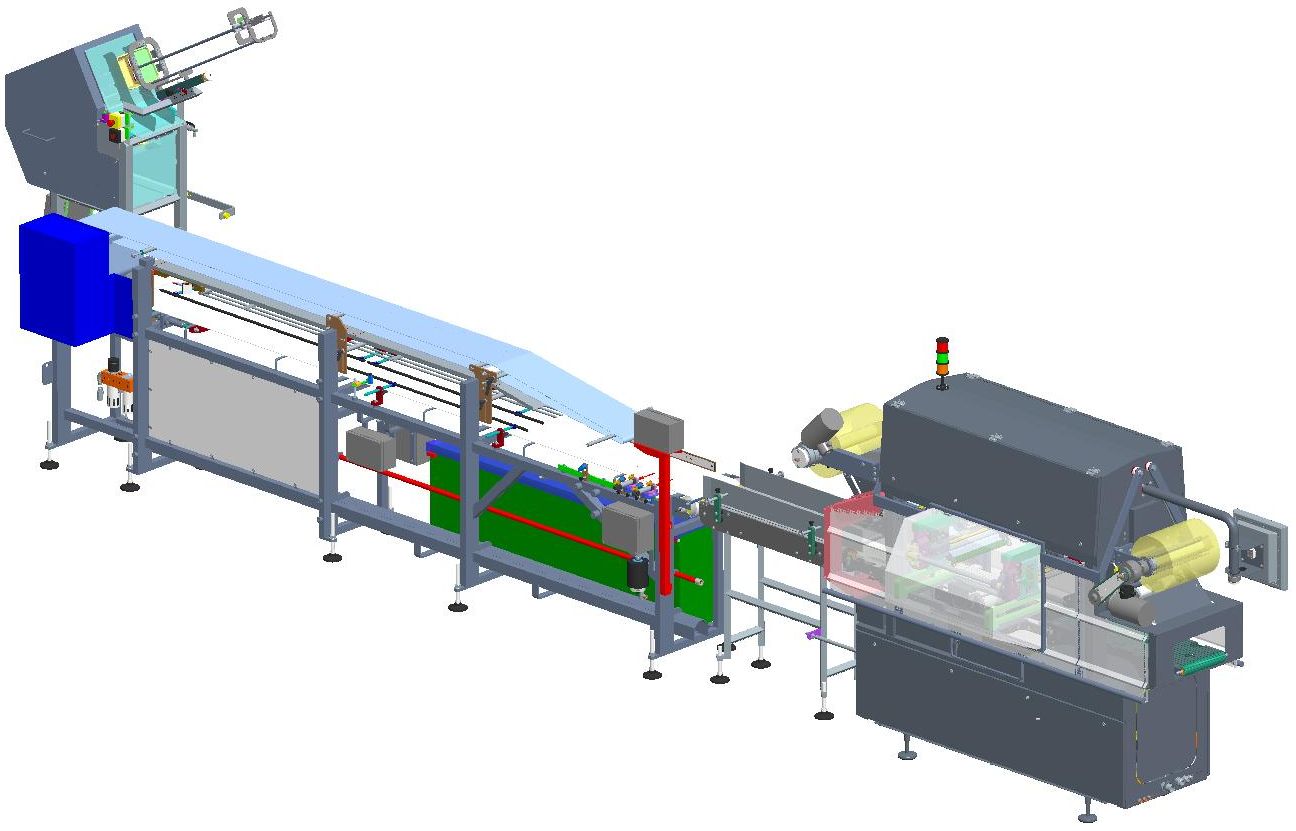

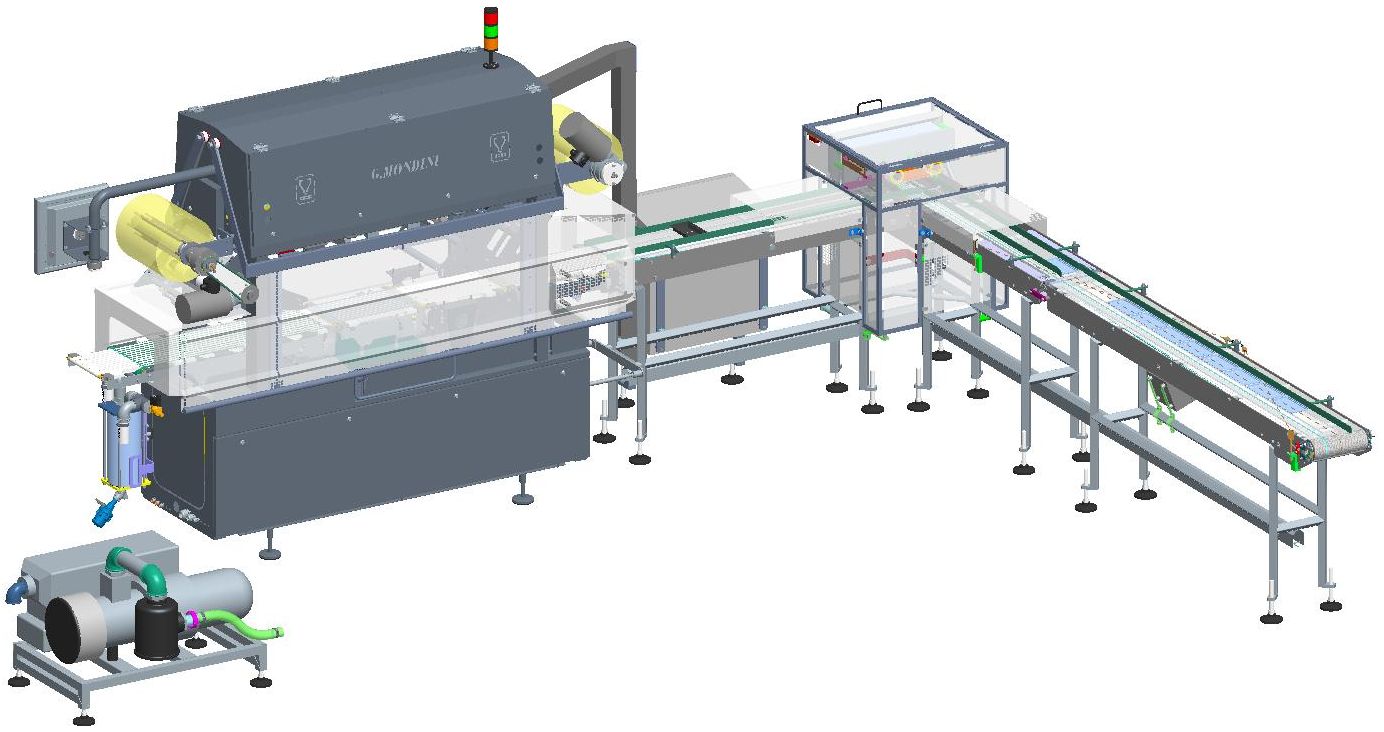

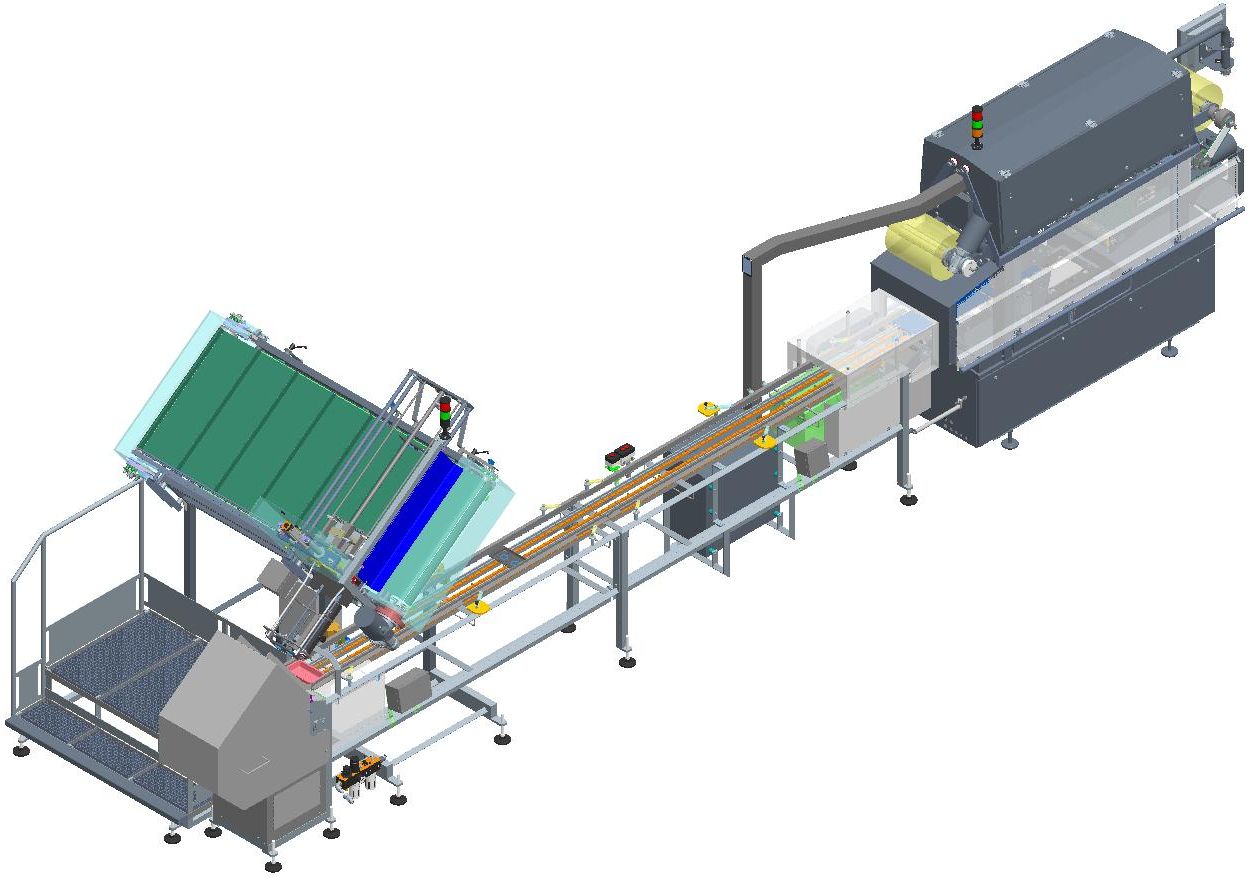

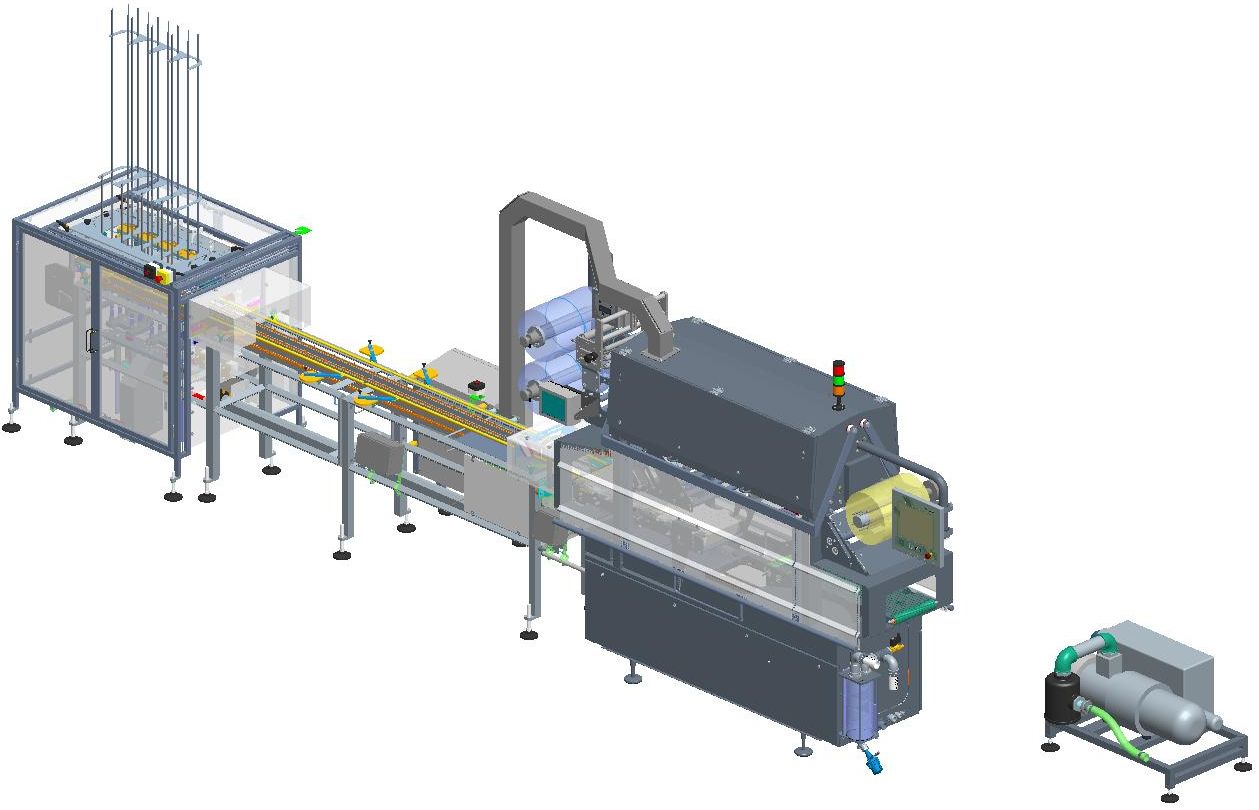

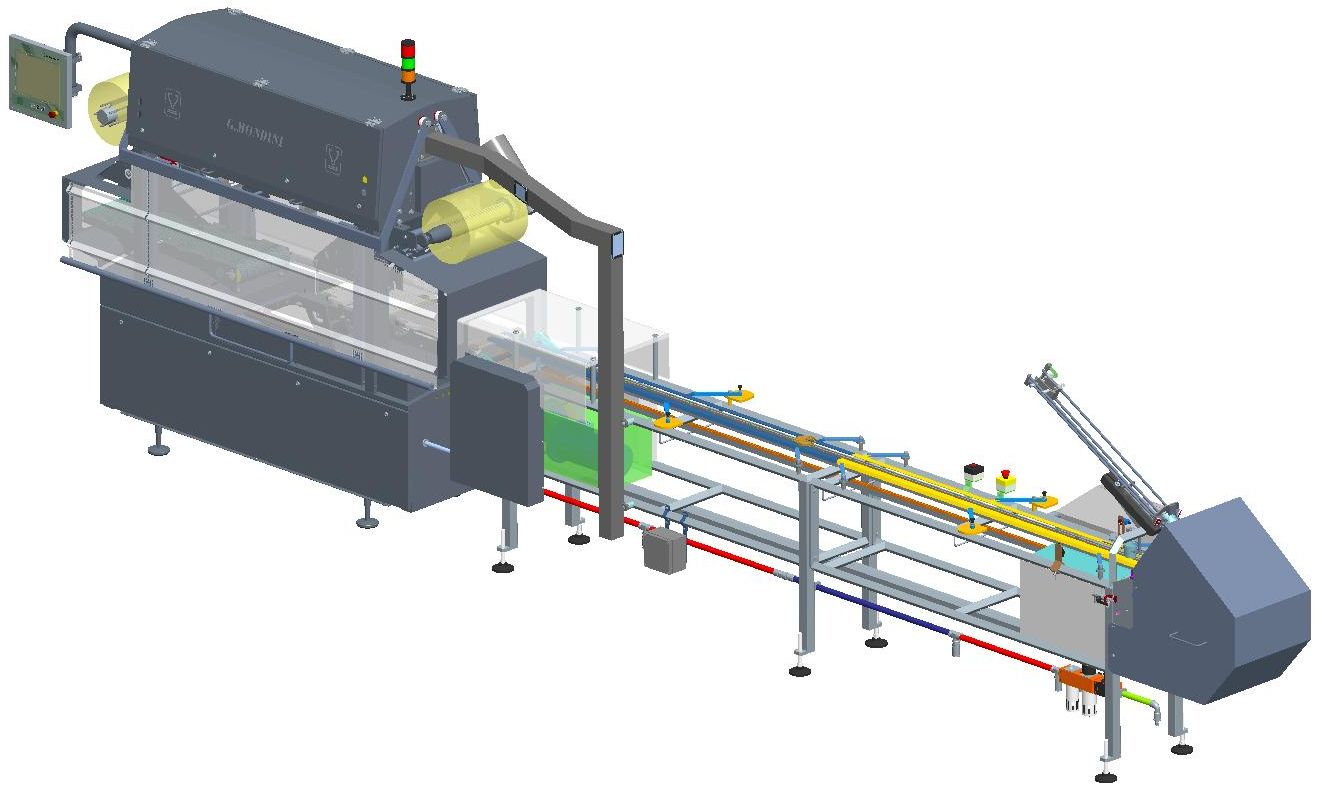

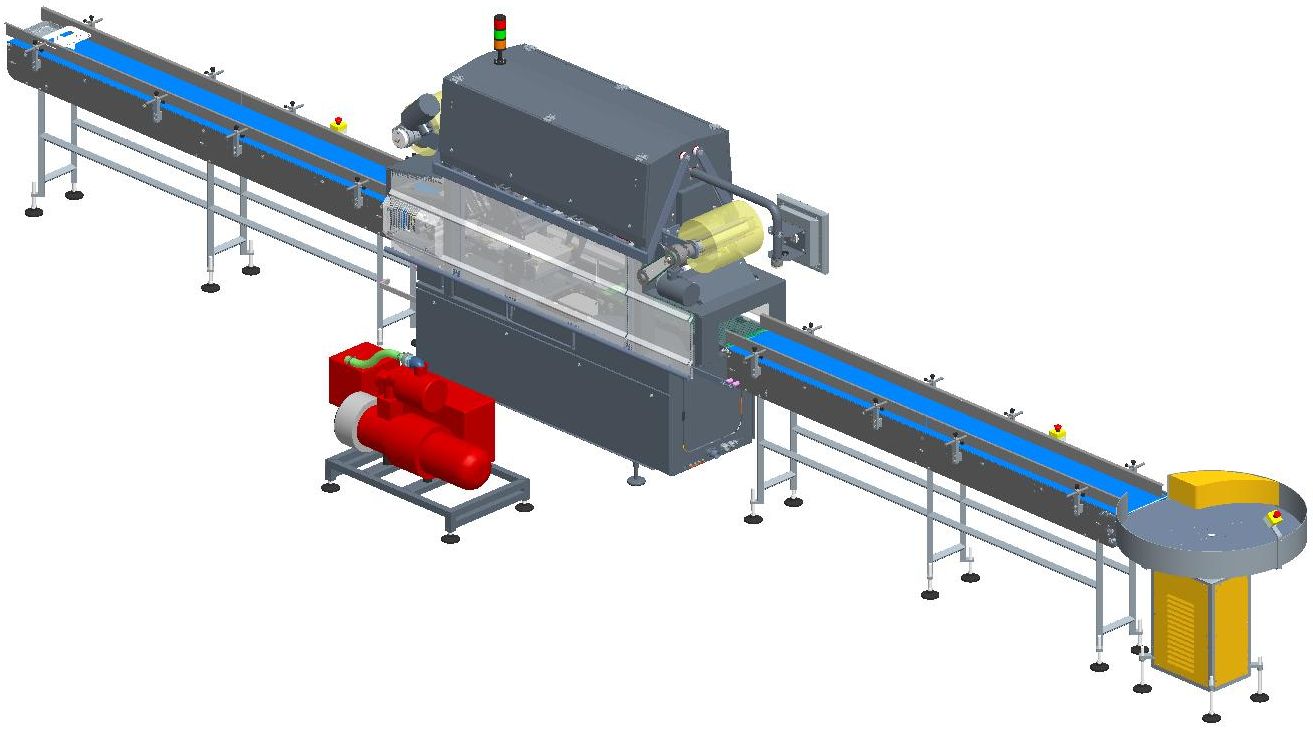

Combining high performance in a compact design whilst still delivering all the benefits of the PLATFORM Technology, the G.Mondini TRAVE 340 is the smallest tray sealer in the range but is still a fully automatic system built on the same principles as the rest of the TRAVE range. It can be used as a single unit or easily integrated into a fully automatic packaging system. This compact unit delivers high performance on all levels with an unsurpassed level of reliability.
Made of stainless steel for the frame and with polyurethane straps, it has low maintenance costs as the system is mainly mechanical. The machine has CE mark and a declaration of conformity.
Additionally, you can combine the G.Mondini TRAVE 1400 packaging machine with dinesters and fillers from the Mondini House. They can also be combined with control and weighing systems.
PMS HELLAS has long experience in the field of food industry equipment. As a result it can offer packaging and processing machines as well as packaging consumables. In addition it offers personalized solutions for all production units, small – medium – large capacity.
PMS HELLAS offers comprehensive technical support (training-spare parts-maintenance) as it knows very well what industrial production means. It has a technical department staffed by specialized technicians who offer their services all days of the week.
We will be happy to respond to your request. Together we will design the best solution according to your needs.
For more information you can visit to the site of G. Mondini.
Machine Presentation
Tool size are 300mm in width and 400 in length, number of trays per tool can be maximum 4 according to the tray dimension in travelling direction. Sealing tool driving system and sealing force consist in a fully electro- mechanical system.
A full change over of the tray sealer can be done in ten minutes. All parameters are menu driven, in this way the skill requirement is very low. Both bottom and top tool slide out of the chassis of the machine. The top and the bottom tool are locked and unlocked through a pneumatic quick release system. No lifting is required by the operators.
High sealing force and consistency of sealing parameters are critical to guarantee the same seal characteristics tray after tray. The Trave – 340 is equipped with high duty system which is of an electromechanical type. A rod-crack system is controlling the motion up and down of the tool position while still very fast. The sealing force can reach 2200 Kg. Main characteristics of this solution are smoothness, high speed, very high consistency in sealing force, very high accuracy in positioning and extremely low maintenance.
Intelligent design with no closed areas and the electrical cabinet being located high up allows for a full machine washdown. All sensitive components are totally enclosed in two water-proof main cabinets, all the doors are reduced to the minimum size erasing hidden spots, providing a complete view of all machine components, with ease of immediate action.
Advanteges
- The electromechanical system gives high welding strength and consistency to the welding parameters
- Intelligent inlet belt technology groups containers to propel them into the welding matrix
- Excellent performance per minute, regardless of the dimensions of the container
- Sanitary design without closed pockets that eliminate dirt traps and the electronic control panel over the machine, allow the machine to be completely washed
Design
- Avoid contact between extended flat surfaces
- There are no closed cavities that can trap water and dirt
- Closed engines
- There are no sensors under the moving belt
- Reduce exposed nuts and bolts
- Central control panel, watertight, at the top of the machine
Quality of construction
- Stainless steel for the frame
- Polyurethane straps
- Low maintenance costs as the system is mainly mechanical
- The machine is CE marked and is accompanied by a declaration of conformity
Closing Station
– Sealing force 2200 kg
– Made of anodized aluminum
– Provides high speed with softness and extremely high cohesion in the sealing force
– The heating is provided by an element cast in aluminum providing benefits from the accuracy of temperature and the reliability of the seal
– Matrix change in 10 minutes
Performance
The product and packaging material will determine the exact time of the cycle. However, for reference, consider the following table of cycles per minute.
| Product Type | Heat Seal | Pre Cut Lid | V&G | G Closure | L Closure |
| Solids | 17 | 15 | 14 | 17 | 16 |
| Liquids | 10 | 10 | 8 | 10 | 10 |
